The Auto-stereoscopic 3D screens technology of Marelli developed in partnership with Alioscopy is based on lenticular lens laminated on top of standard display enables a 3D effect without the use of glasses, allowing the viewer to perceive depth through the naked eye. Currently available 10,25 HD and 12,3 FH.
Products Portfolio

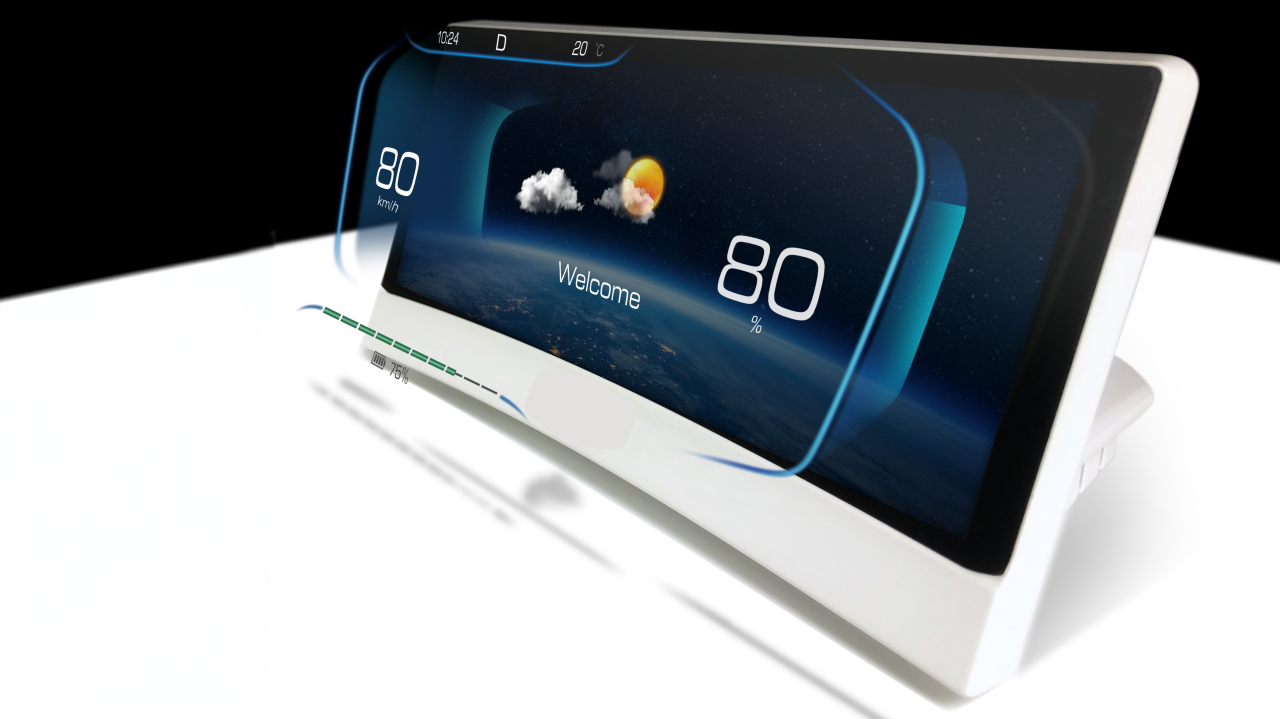

3D auto-stereoscopic HD display glasses-free on a digital cluster
- Features
- Benefits
There are some key features that deserve to be highlighted:
• 10.25 HD (1920x720/205ppi) Normally Black IPS TFT
• Scalable Display Platform: 10,25’’/ 12.3’’/2x12.3" HD
• Lenticular technology can be applied on top of a standard display
• µ-lenticular lenses technology enabling autostereoscopic rendering
• Marelli auto-stereoscopic HMI plugin
• Cover Lens with AGAR treatment
• Needles and gauge value highlight (partial read of the content instead to read whole information of display)
• Warning with extensive perception of the danger
• 3D perception of the ADAS event (rear, back, distance, near, …) • Extensive immersion in Map/navigation reading
There are some benefits that deserve to be highlighted:
• 3D images can be represented without uses of specific glasses or device
• Enhances the readability of content (3D object, depth perception) and Improves perception of the surrounding environment
• They can replicate complex surfaces of an object or be used to display alerts to the driver
• Cost and space efficiency vs competition: the technology is based on unique display
• Marelli tool chain to develop 3D content with limited SOC resources (CPU/GPU)
• Flexibility in technology application: Possibility to extend the technology to any type of Display
